Integrating Google Play Integrity & Apple App Attest to build a multi-layered defense

In the era of bots, emulators, and modded apps, trusting client requests blindly is a recipe for disaster. To protect critical flows like Registration and Login, we need hardware-level authentication. How can a Backend truly know a request is coming from a "real user" on a "physical device", rather than a Python script or a repackaged app?

In this post, I’ll share my hands-on experience integrating Google Play Integrity (Android) and Apple App Attest (iOS) to build a multi-layered defense system.

1. At a glance

In my experience, the biggest difference between the two platforms lies in how they handle the "session":

• iOS (App Attest): Focuses on "Key Persistence." You register a key once and use it to sign future requests.
• Android (Play Integrity): Focuses on "Per-request Integrity." It typically involves getting a fresh verdict for specific actions.

2. Deep Dive into Implementation

2.1. Apple App Attest (iOS)

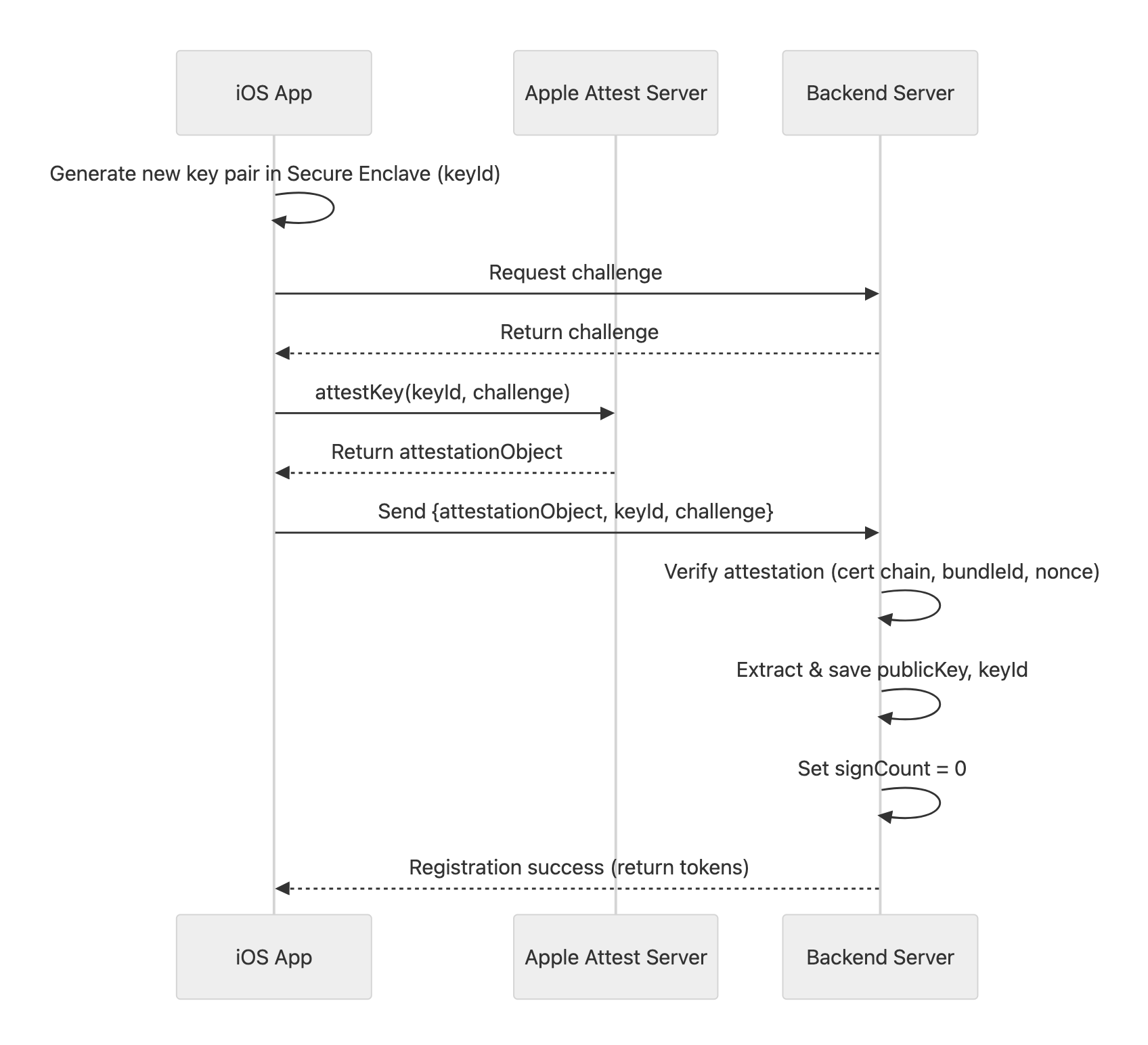

How it works: iOS operates in two stages: Attestation (Key Creation) and Assertion (Request Validation).

Stage 1: Attestation (Registration) When a user registers or switches devices, the app generates a key pair in the Secure Enclave. Apple signs this to certify the key originated from a legitimate device.

Stage 2: Assertion (Authentication) For every subsequent critical API call, the app uses the Private Key to sign a challenge. The Backend uses the stored Public Key to verify it.

​Note: The Backend must verify that newSignCount > oldSignCount to prevent replay attacks from intercepted requests.

Implementation Example - Attestation & Assertion (Swift)

// 1. Attestation
func getAttestationData() async throws -> AttestationData {
    let keyId = try await service.generateKey()Enclave
    let challengeHash = Data(SHA256.hash(data: challenge.utf8))
    let attestation = try await service.attestKey(keyId, clientDataHash: challengeHash)

    return AttestationData(keyId: keyId, attestationObject: attestation.base64EncodedString())
}

// 2. Assertion:
func getAssertionData() async throws -> AssertionData {
    let keyId = try KeychainHelper.loadKeyId()
    let challengeHash = Data(SHA256.hash(data: challenge.utf8))

    // (Sign) challenge with Private Key
    let assertion = try await service.generateAssertion(keyId, clientDataHash: challengeHash)

    return AssertionData(keyId: keyId, assertionObject: assertion.base64EncodedString())
}

2.2. Android: The Power of Nonce

Android is simpler regarding storage but stricter regarding the Nonce to prevent Replay attacks.

How it works: Stateless challenge–response from the backend’s perspective.

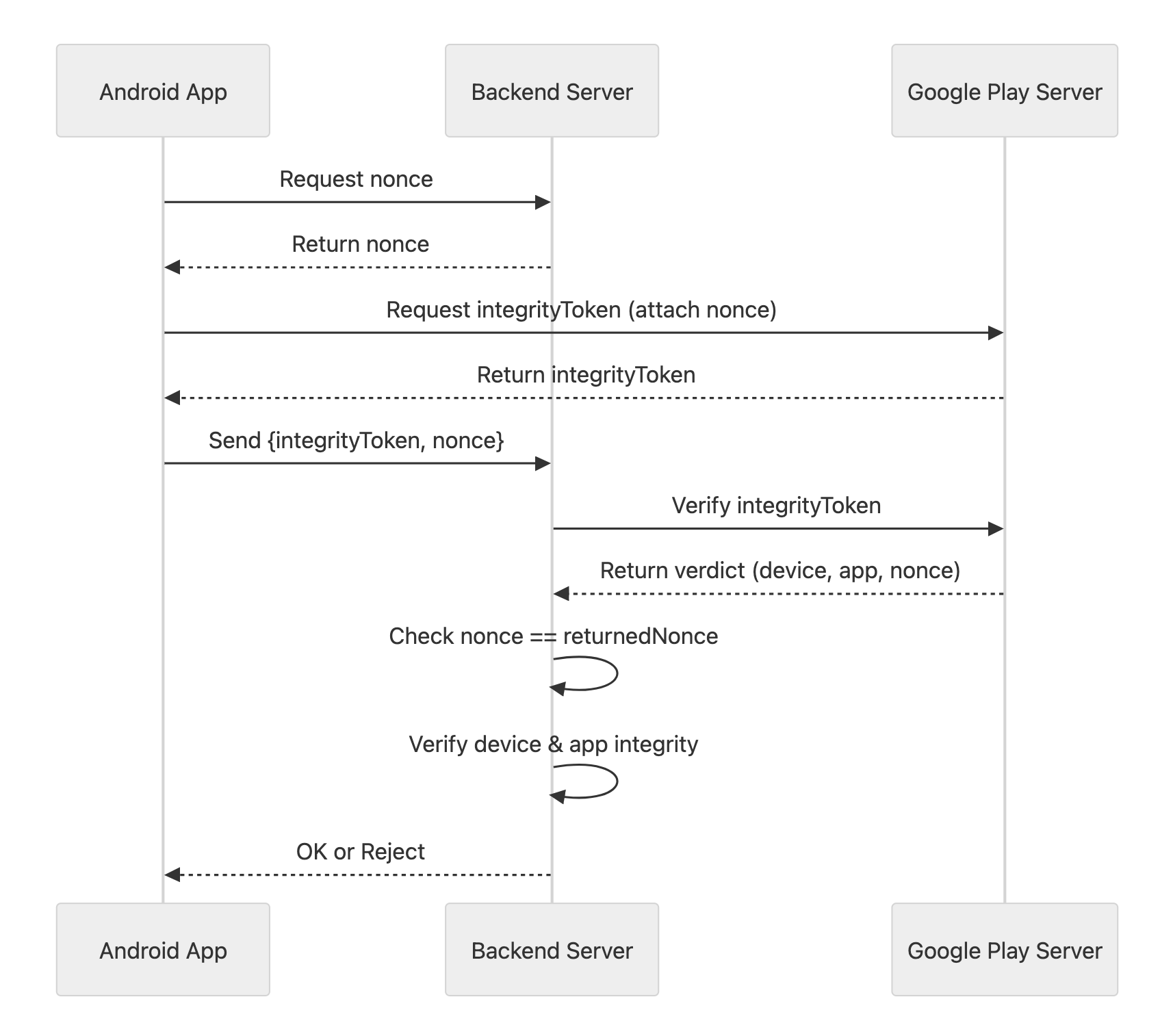

• Basic flow
  1. Backend generates a random nonce + timestamp.
  2. Client receives this nonce and calls requestIntegrityToken to get an integrityToken from Google Play Services.
  3. Client sends integrityToken and nonce to backend
  4. Backend sends integrityToken to Google for decryption
  5. Google returns a verdict with Device Integrity, App Integrity, and an echoed nonce
  6. Critical check: Returned nonce must match the request nonce to prevent replay

Implementation Example - Android: Play Integrity Request (Kotlin)

@Singleton
class IntegrityManager @Inject constructor(@ApplicationContext private val context: Context) {
    private val integrityManager = IntegrityManagerFactory.create(context)

    suspend fun requestIntegrityToken(nonce: String): Result<IntegrityResponse> {
        val request = IntegrityTokenRequest.builder()
            .setCloudProjectNumber(CLOUD_PROJECT_NUMBER)
            .setNonce(nonce)
            .build()

        return try {
            val response = integrityManager.requestIntegrityToken(request).await()
            Result.success(IntegrityResponse(token = response.token(), nonce = nonce))
        } catch (e: Exception) {
            Result.failure(e)
        }
    }
}

2.3. Backend Implementation

To keep the system scalable, separate responsibilities into dedicated services for parsing ASN.1/CBOR and validating signatures.

Unlike Android's JSON-friendly approach, iOS doesn't return a simple JSON. The attestationObject is a binary blob encoded in CBOR. My research showed that the Backend must perform the following validation chain:

1. Parse the CBOR structure to extract authData and attStmt.
2. Verify the certificate chain starting from the Apple Root CA.
3. Extract the Public Key from authData to store for future use.

3. Real-World Scenarios & UX Optimization

I spent significant time refining these End-to-End flows to ensure security doesn't break the user experience:

• New Registration: Requires full Attestation (iOS) or Integrity Token (Android).
• Existing Device Login: Use Assertion (iOS) to save resources and verify signCount.
• Device Migration: When a user gets a new phone, the iOS app won't find the old key in the Keychain (noKeyFound).
  • Solution: Fallback mechanism. If Assertion fails, the app automatically triggers a new Attestation flow to update the Key on the server.
• Social Login: Try Assertion first. If the User is null or KeyId mismatches, require Attestation to "Link" the device to the social account.
• Lazy Attestation: Don’t force users to Attest the moment they open the app. Instead, trigger it only during sensitive actions like "Checkout" or "Change Password."

4. Final Verdict

4.1. The Pros

• Bot-Proof: It is nearly impossible to spoof a signature from a hardware security chip. Only real devices pass.
• App Integrity: Guarantees the request comes from your official app binary, not a modified version.

4.2. The Cons

• Third-Party Dependency: If Apple or Google servers go down, your validation flow might be affected.
• Complexity: It is labor-intensive to parse and verify complex data formats like CBOR and ASN.1.

4.3.When should we use it?

Not every API needs this heavy-duty protection. I recommend prioritizing based on risk:

• Critical Flows (Must-Have): Registration (blocking bot farms/promo abuse), Payments/Withdrawals, and changing sensitive info (passwords, emails).
• High-Value Flows (Should-Have): Login (using Assertion for passwordless-feel security) and Comments/Reviews (to prevent spam seeding).
• When to Skip: Public data fetching (Product lists, news). Requiring signatures here only adds unnecessary latency. Also, consider an "Allow-list" for legacy devices (Androids without Play Integrity or iOS < 14.0).
